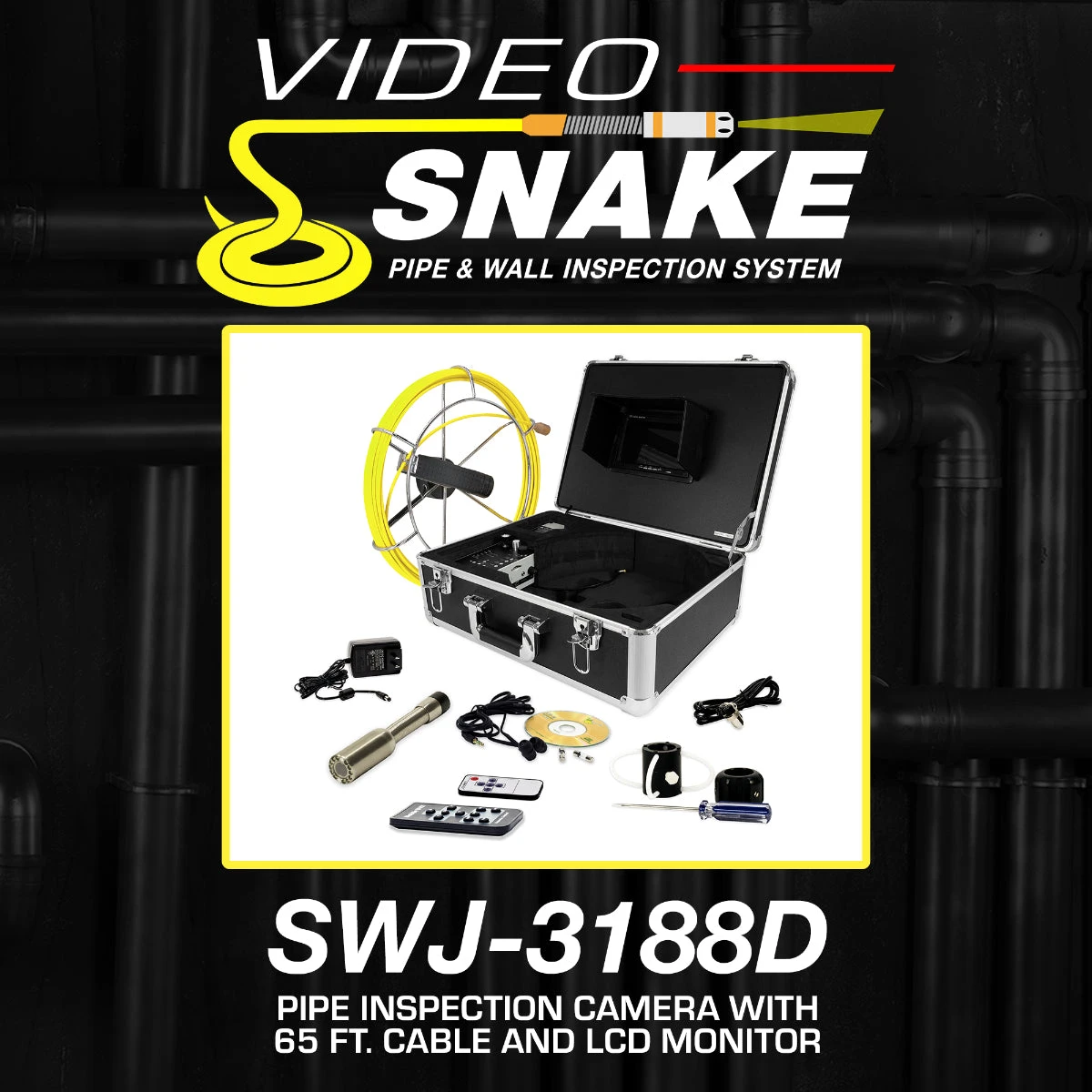

Video Snake SWJ-3188D 65-Foot Complete Color Camera Inspection System – Reconditioned

Features

• A Great Addition to Any Plumbers Arsenal of Tools.
• Built-In 7? 320-Line TFT Color Monitor w/ Sun Shade.
• 7/8? x 3? CCD Color Camera w/ 8-deg. IR-LED Night Vision 60-deg. Field of View and 16? Focal Dist.
• Fiberglass Cable and Stainless Steel Reel.
• Waterproof

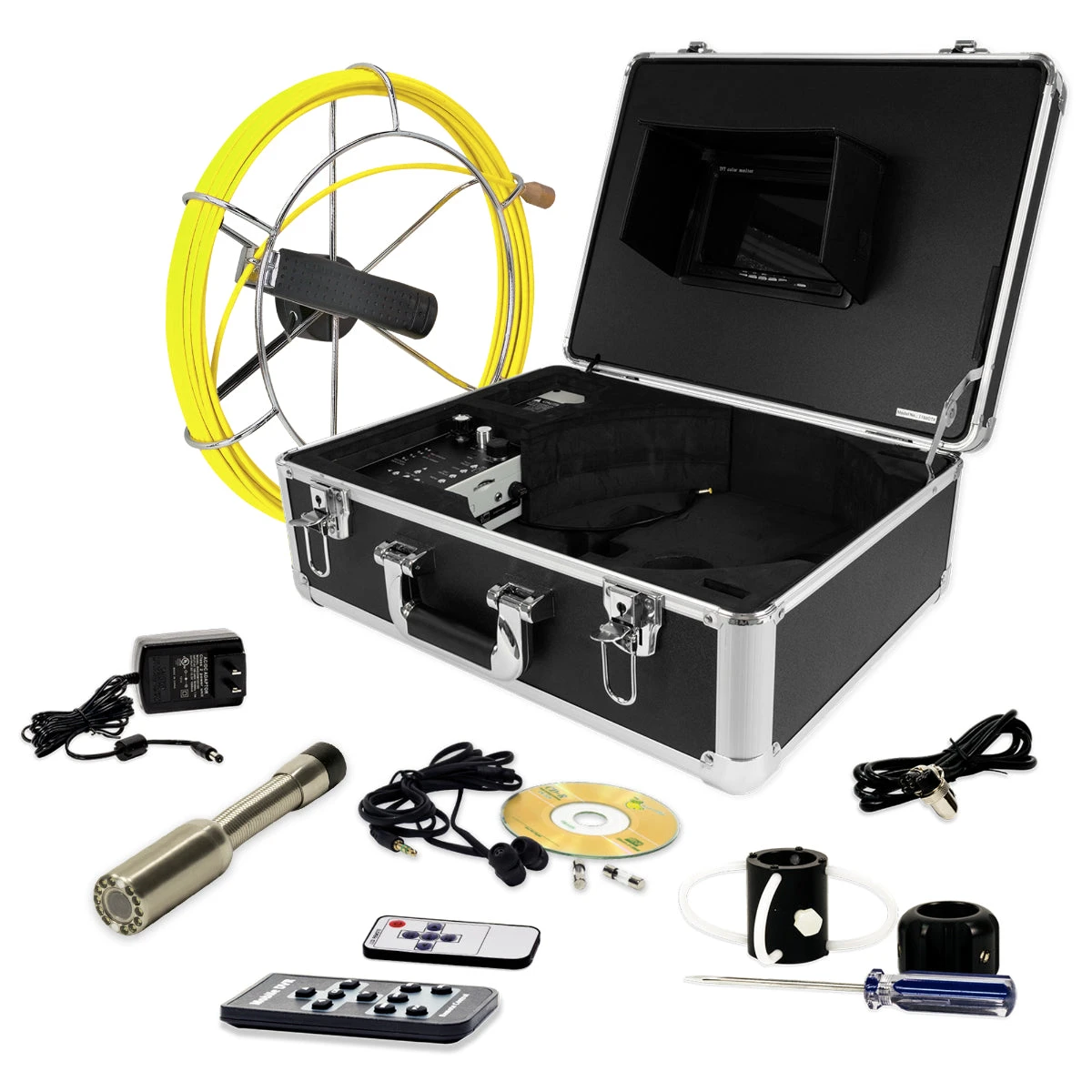

What’s in The Box

• Built-In Color Monitor
• CCD Color Camera
• 65-ft. Cable Spool
• Built-In Battery / Charger
• Monitor Power Supply
• IR Remote
• CODEC CD
• Manual
• Carrying Case
• Owner’s Manual

Warranty

• 1-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	SWJ-3188D
Brand	Video Snake

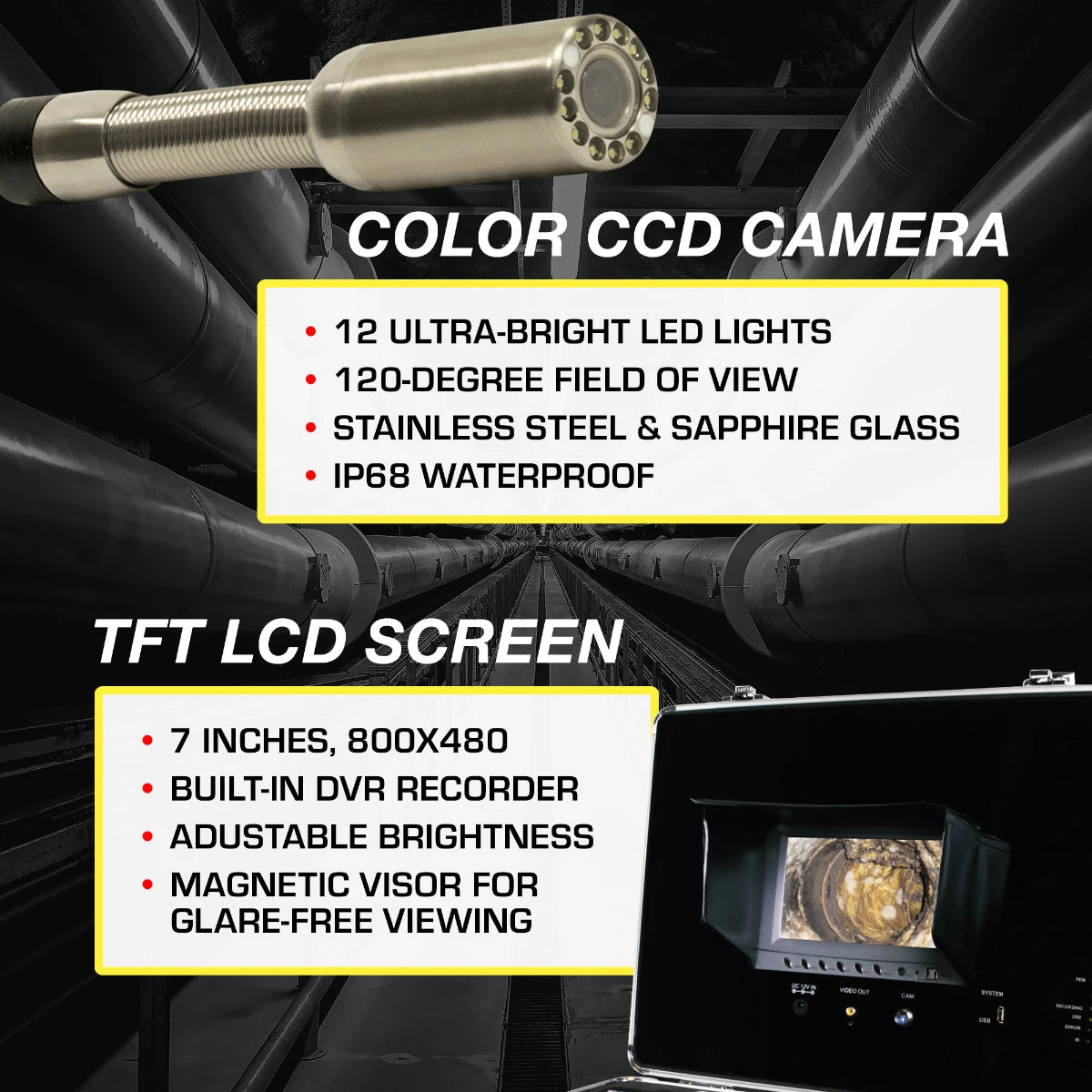

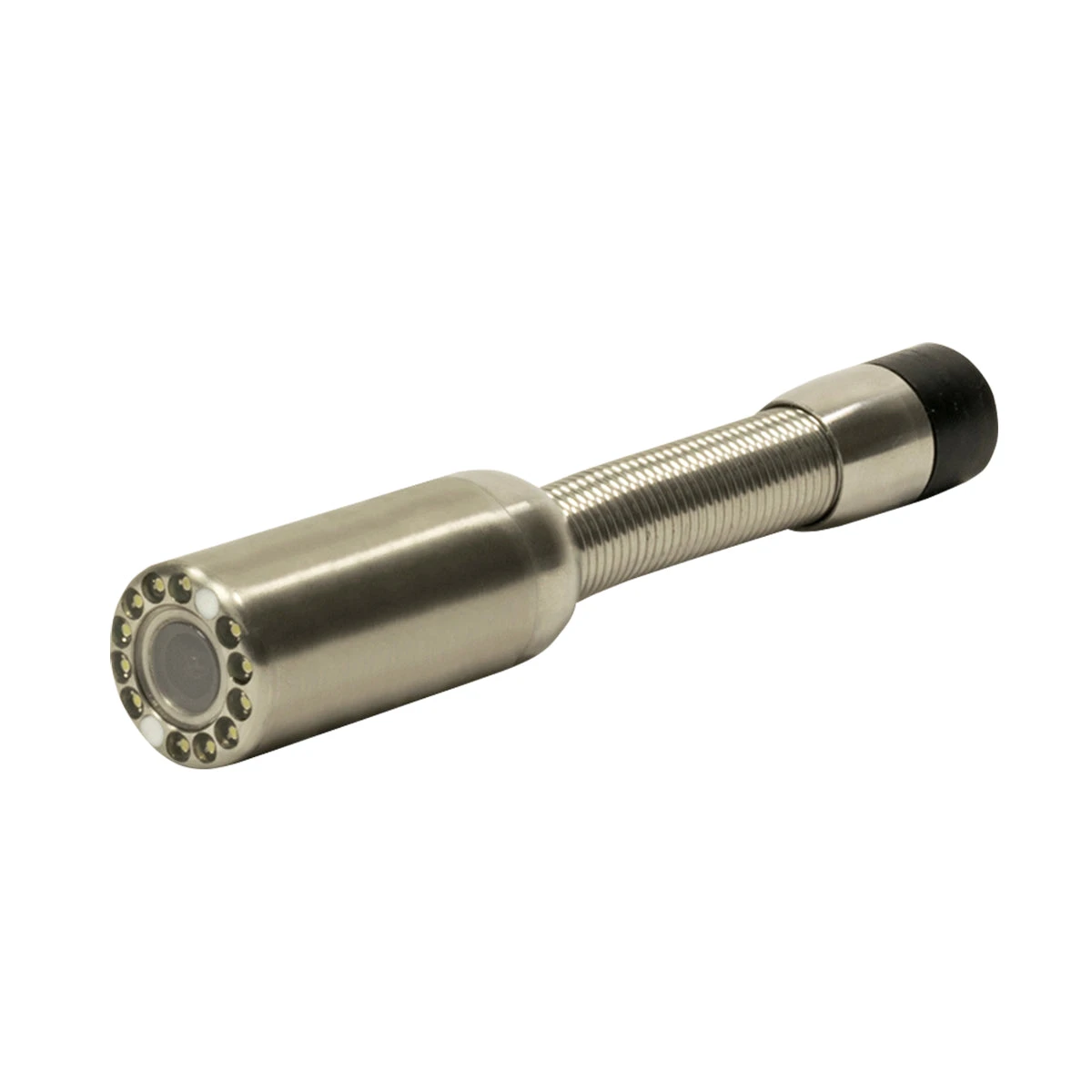

Camera
Construction	Stainless Steel Housing, Heavy Spring, Gold Post Connections
Dimensions Overall	7/8 x 4 1/4 (23mm x 108mm)
Diension Camera Only	7/8 x 1 3/4 (23mm x 45mm)
LED Count	12
Field of View (Degrees)	120
Resolution	720 x 480
Waterproof	IP68
Sonde Transmitter (Hz)	512
Minimum Pipe	1
Minimum Pipe to 90Degree	2 1/2

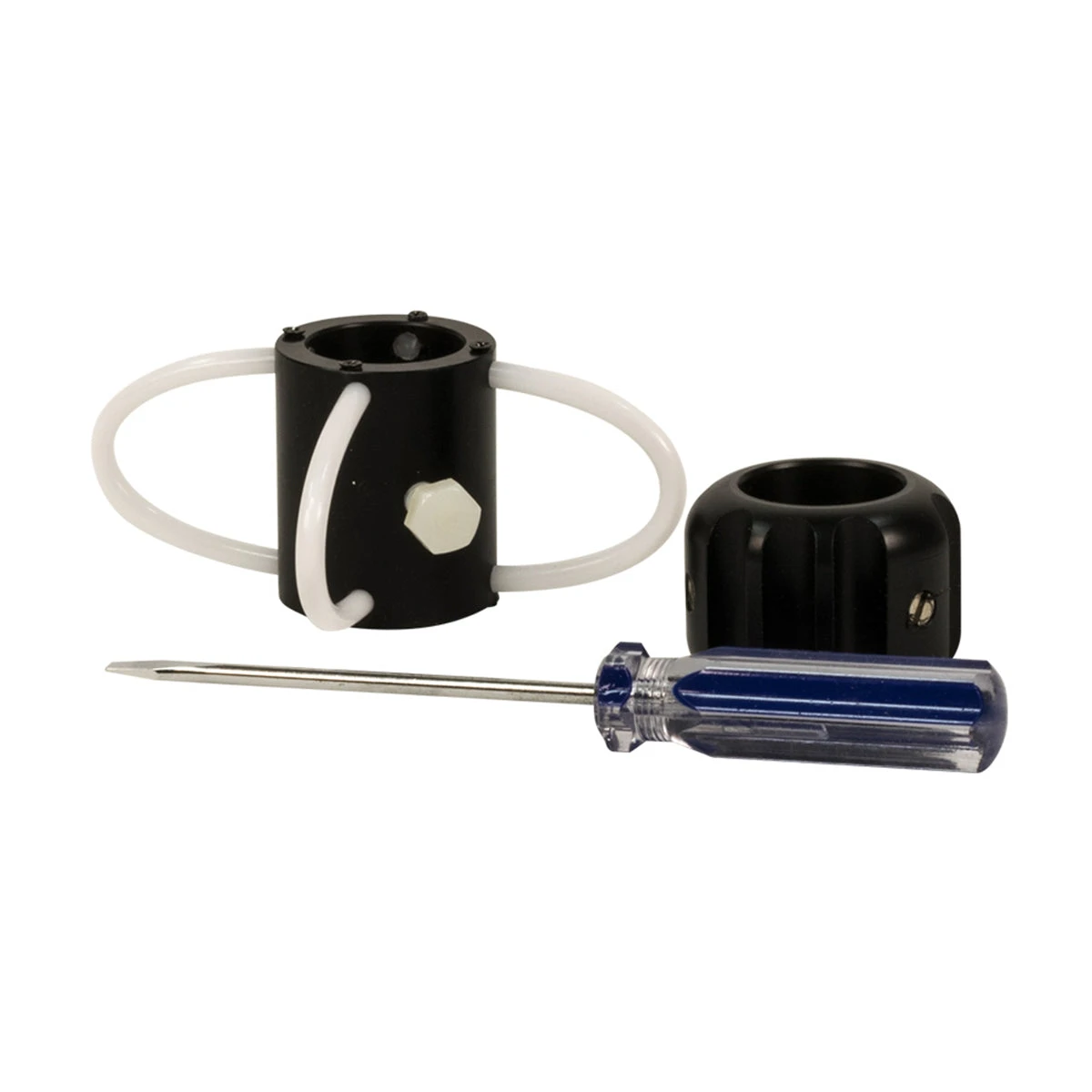

Camera Skids	1-1/2 and 3-3/4

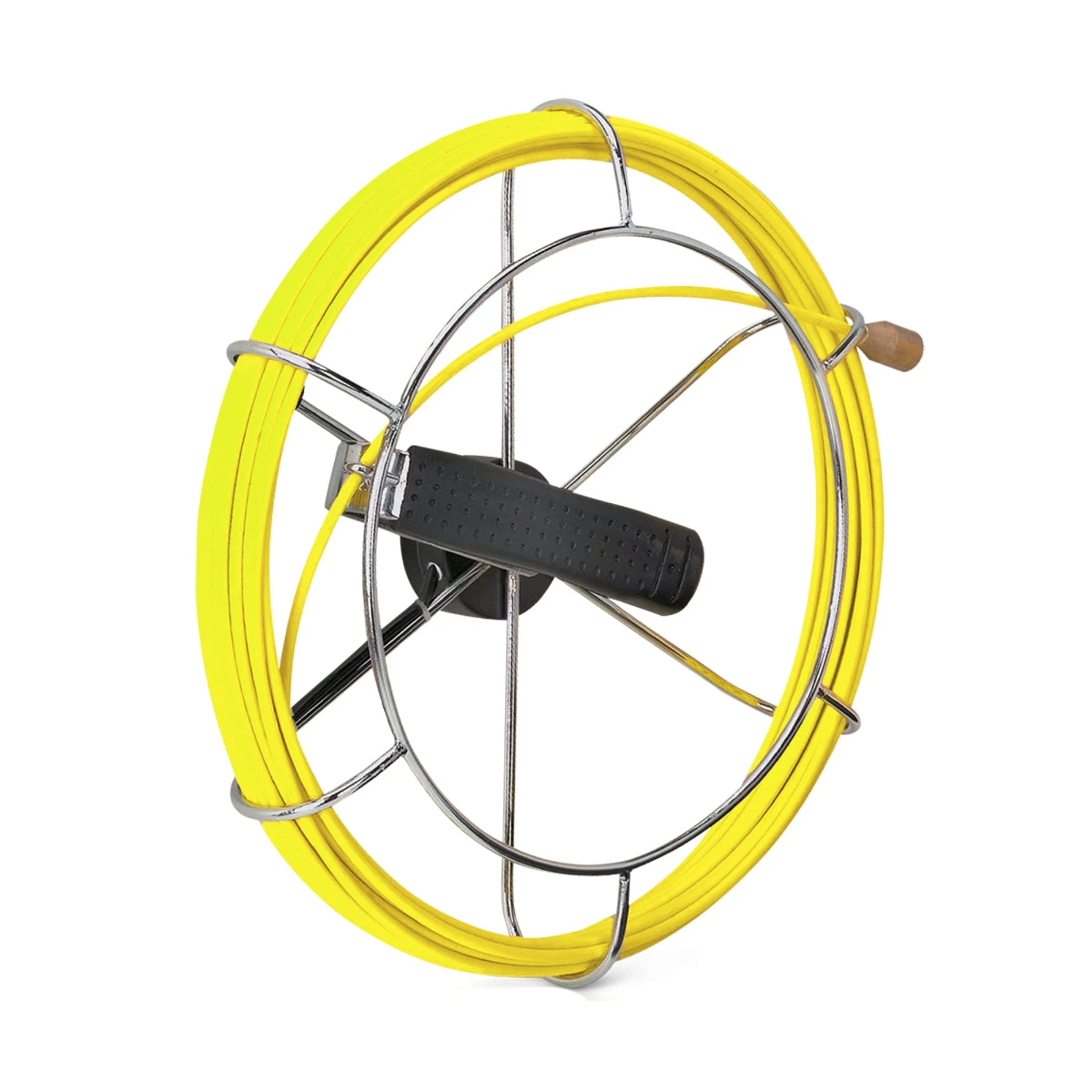

Cable w/ Reel
Construction	Fiberglass Rod Push Cable, Gold Contacts
Reel Dimensions	12 1/2 x 4 1/2
Cable Diameter	.20 (5.2mm)
Monitor
Dimensions	6 x 4 (7 Angled)
Display Type	TFT LCD Digital Display
Resolution	800 x 480
Menu	On Screen
Video Input	1VPP Composite Signal
Remote Control	Yes
Control Box
Dimensions	3 1/2 x 6 1/2 x 2 1/2
Modes	Charge, Off, AV, DVR
Video Out	RCA
Post Connectors	4
Control Buttons	9
Voltage	12
Fuse Holder	2A 250v Fast Blow
Battery
Construction	Li-Ion, UL Approved Battery
Dimensions	2 3/4 x 4 x 2
Total Power	14w
Charger	Included 12.5v 1A
Charge Time	5 hrs
Work Time	Less than or Equal to 300 Minute
Soft Cables (Connects the Reel to the Control Box)
Construction	RVVP (copper core PVC insulated shield PVC sheathed flexible cable voltage 300 v / 300 v2-24 core)
Dimensions	5′ Cable and .20 Diameter
Connectors	2 All metal

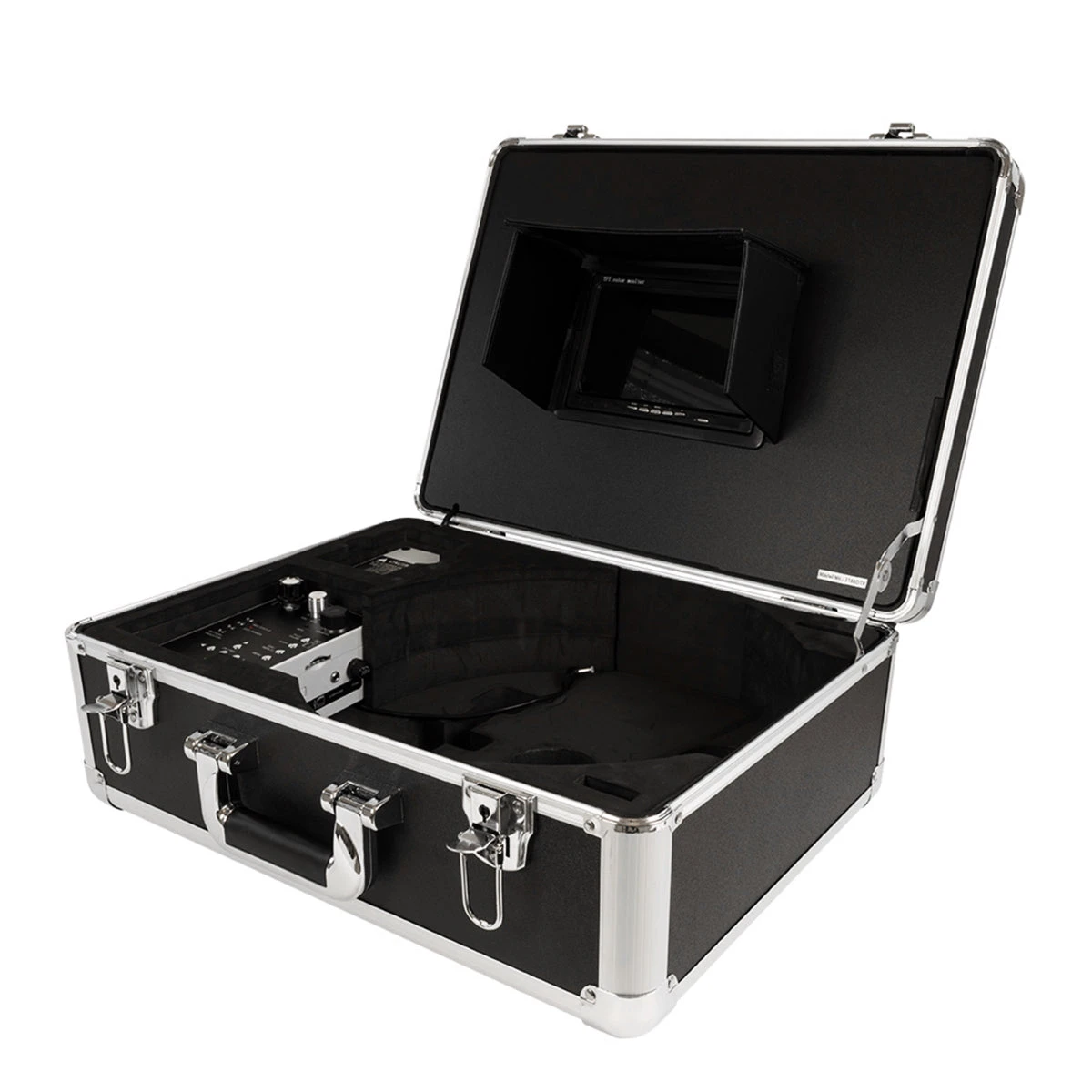

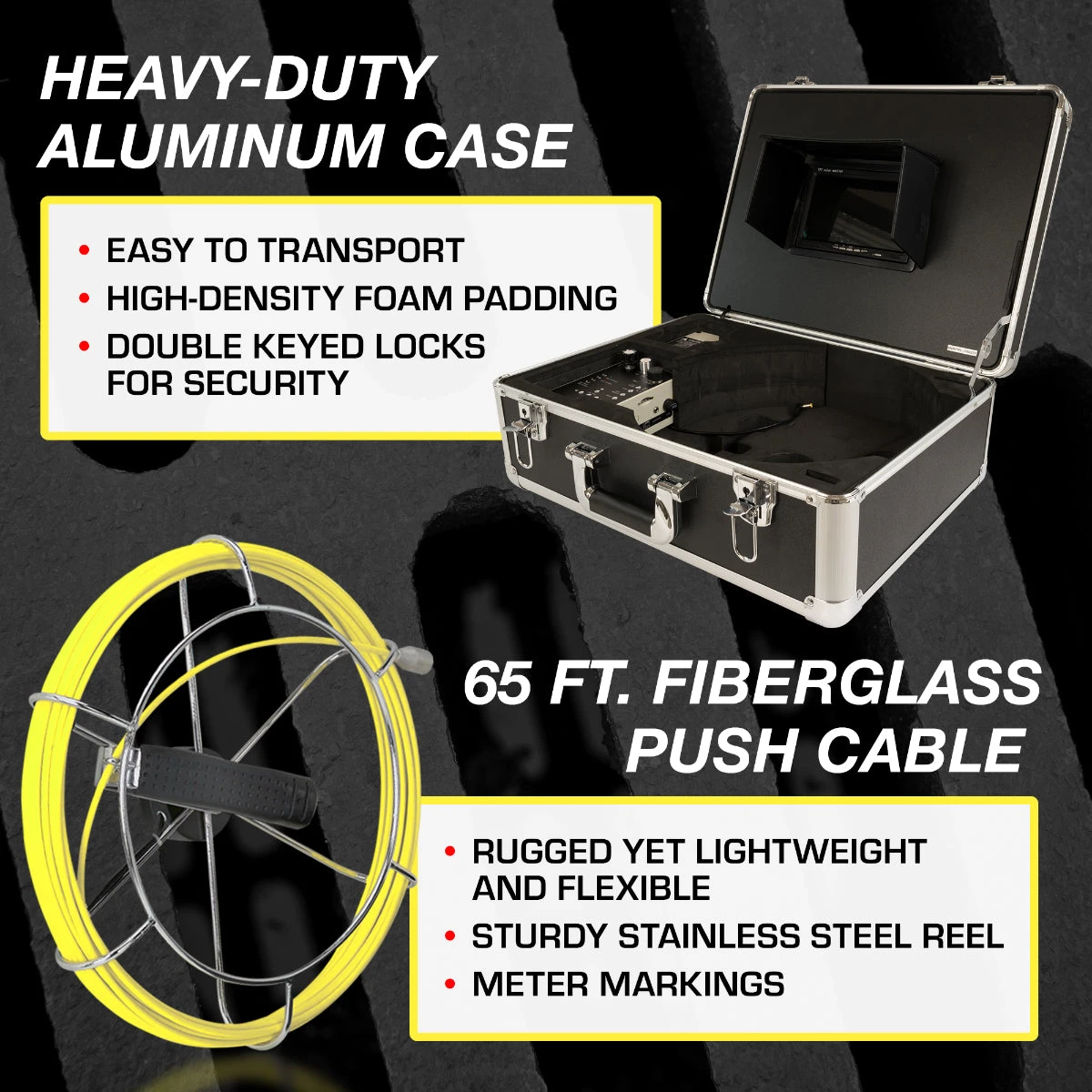

Carrying Case
Construction	ABS w/ Metal Edging, Reinforced Corners
Dimensions	18 x 7 1/2 x 14
Locking Klips	2 Keyed
Footpads	4
Padding	Fitted High Density Foam
Retail Box Dimensions	18 3/4 x 8 1/8 x 16 1/4
