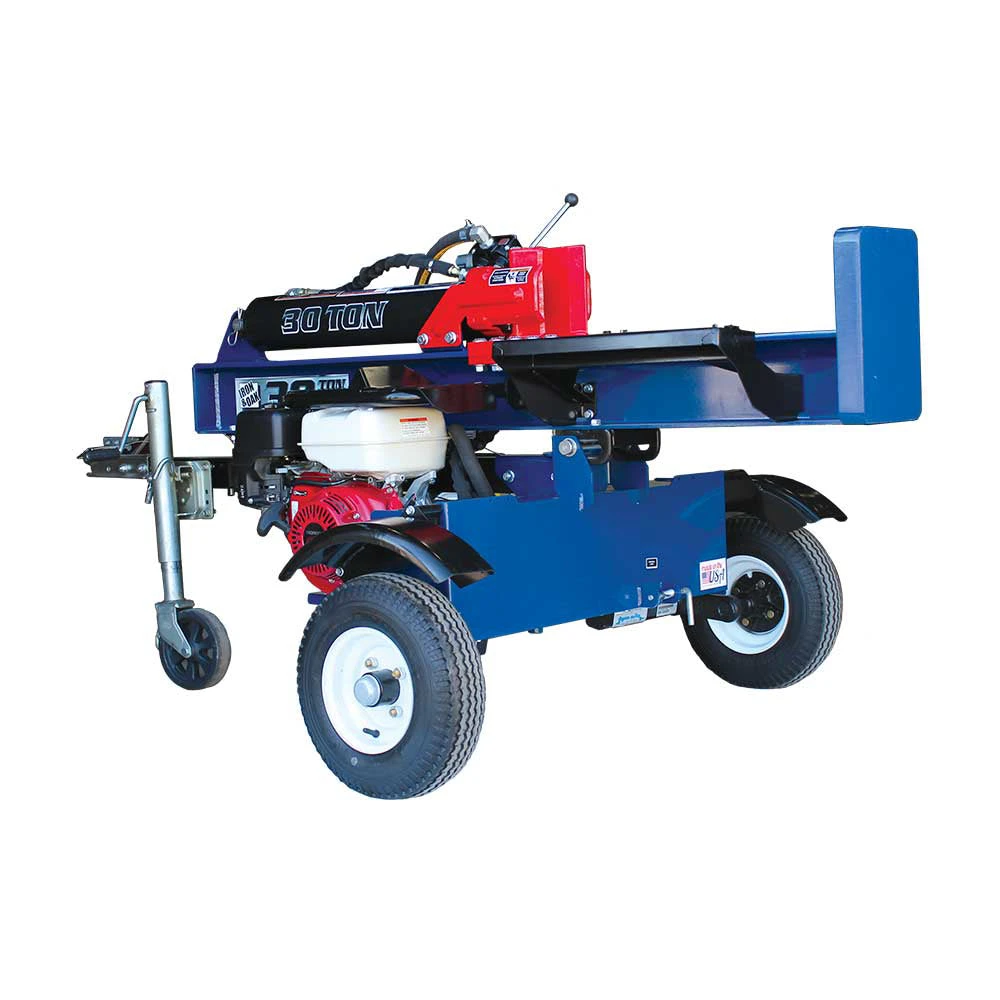

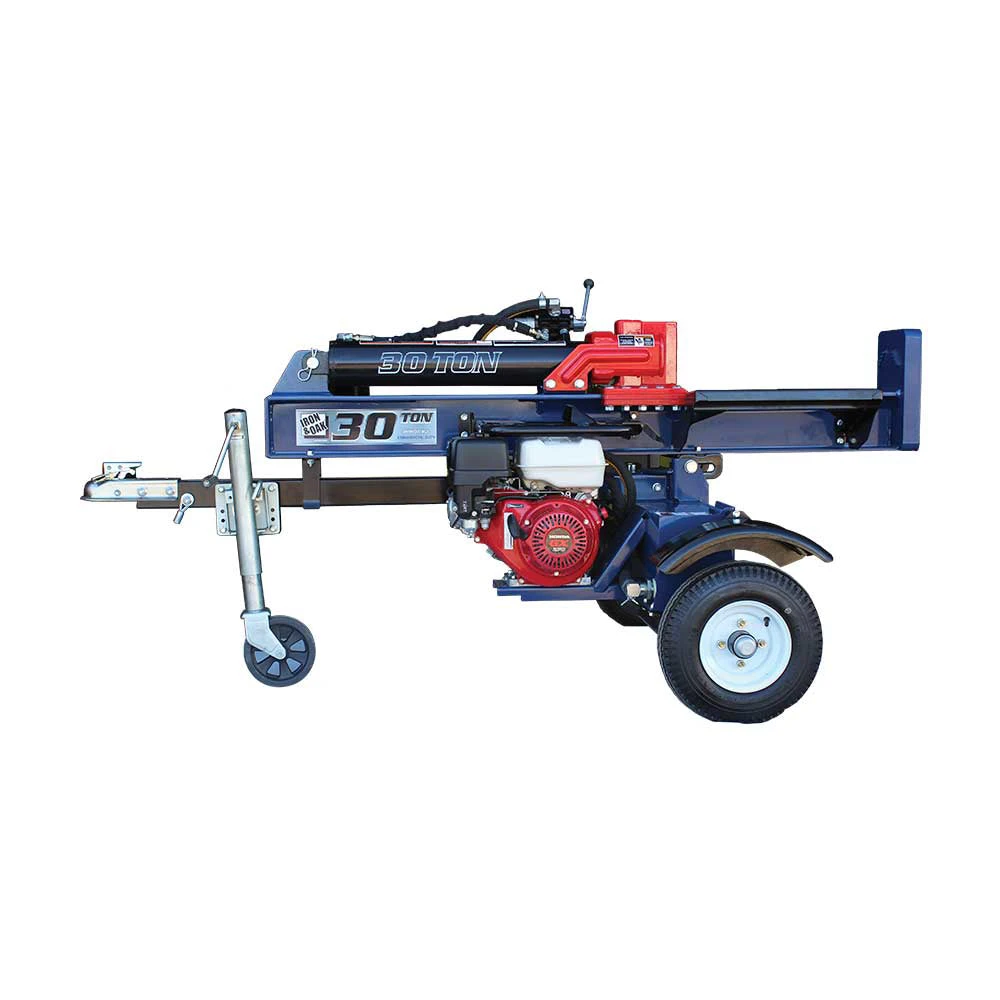

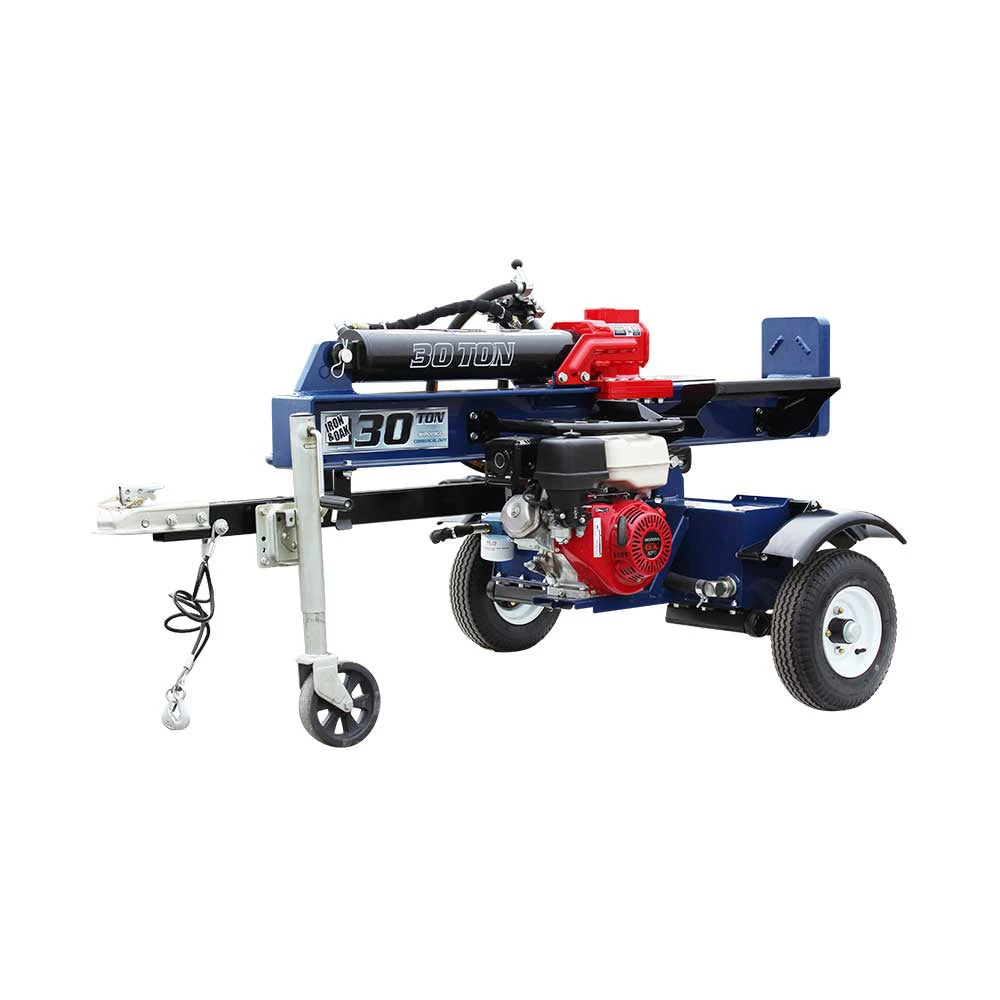

Iron And Oak BHVH3018GXT 30-Ton Log Splitter Torsion Axle W/ Honda GX270 Engine

Features

• Auto latch system locks beam into the horizontal position for safe towing
• Enhanced handle to assist with transitioning the unit between horizontal and vertical operating positions
• The 4-stage hydraulic filtration system prevents damage to the hydraulic system by removing metal particles and other micro-particles that can contaminate and damage the machine. Components include a suction strainer, return line filter, breather cap air filter, and magnetic drain plug
• Offset valve for a better operator position

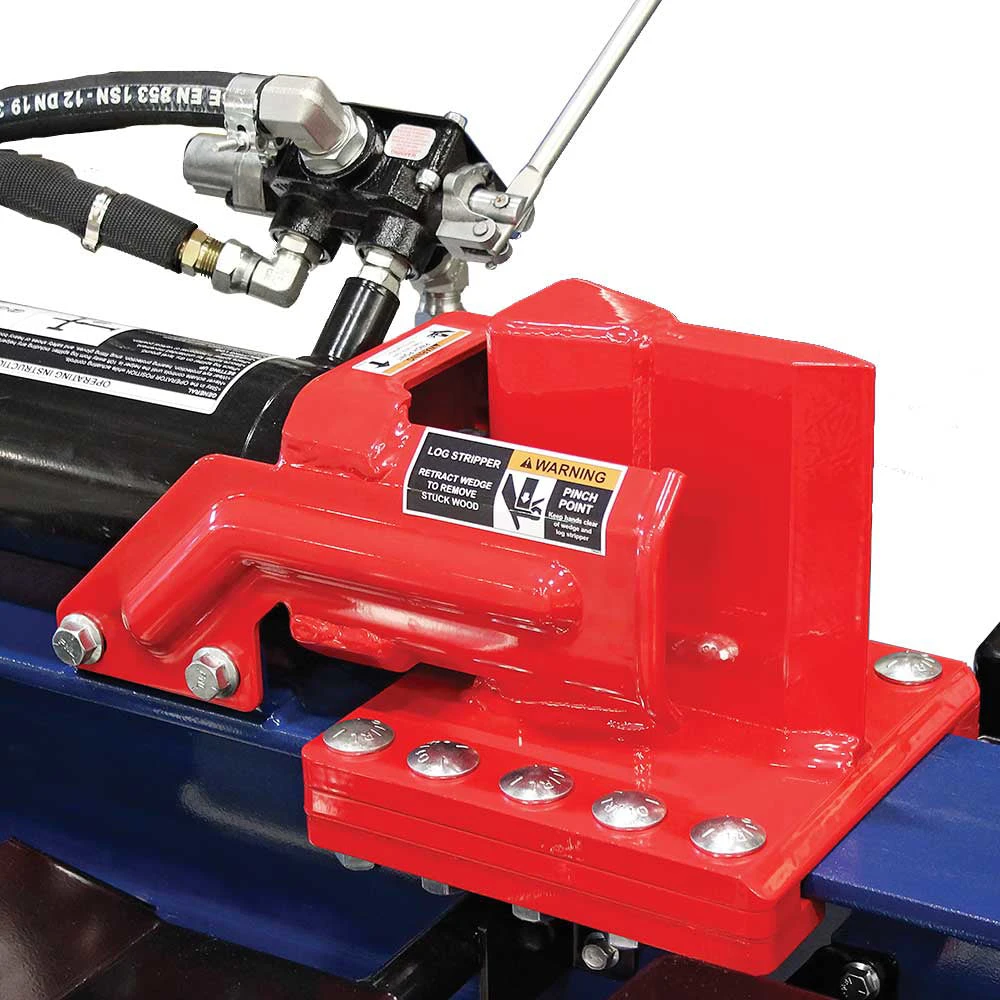

• Heavy-duty wedge design with five bolts per side
• Halite commercial cylinder seals
• Log dislodger and log cradle standard
• Larger jack wheel makes it easier to move
• Tow cables included
• Torsion axle and engine guard standard

What’s in The Box

• Iron & Oak Log Splitter | 30-Ton | Torsion Axle | Honda GX270
• Owner’s Manual

Warranty

• 30 Day Satisfaction Guaranteed

Specifications

SKU	BHVH3018GXT
Brand	Iron & Oak
Equipment Type	Log Splitter (Tow-behind)
Cycle Time	12 Seconds
Cylinder Size	4.5 in. x 24 in. Clevis Type, 1.75-in. Rod
Displacement	270cc
Dry Weight	730 Lbs

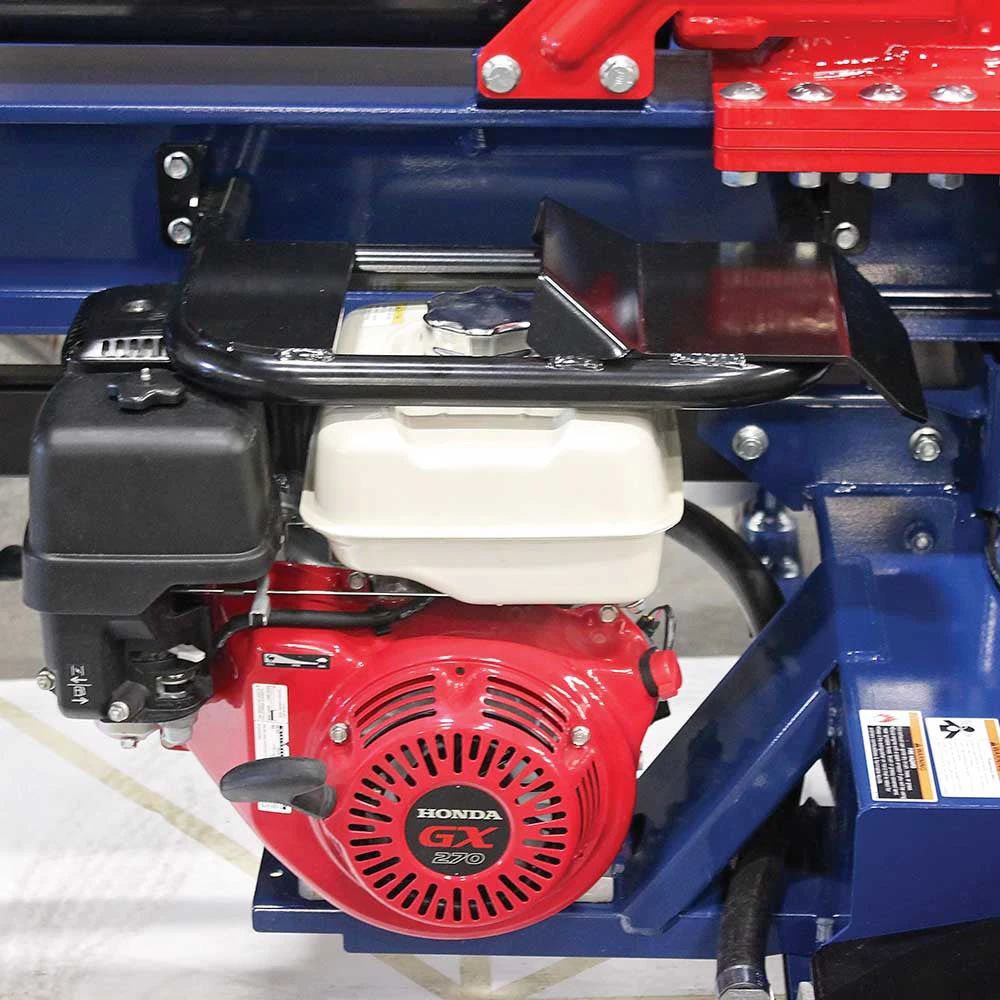

Engine	GX270
Engine Brand	Honda
Hitch	2 In.
Hydraulic Capacity	10.5 Gal. System Total (Tank 9 Gal. System Total)
Log Length	25 in. Max

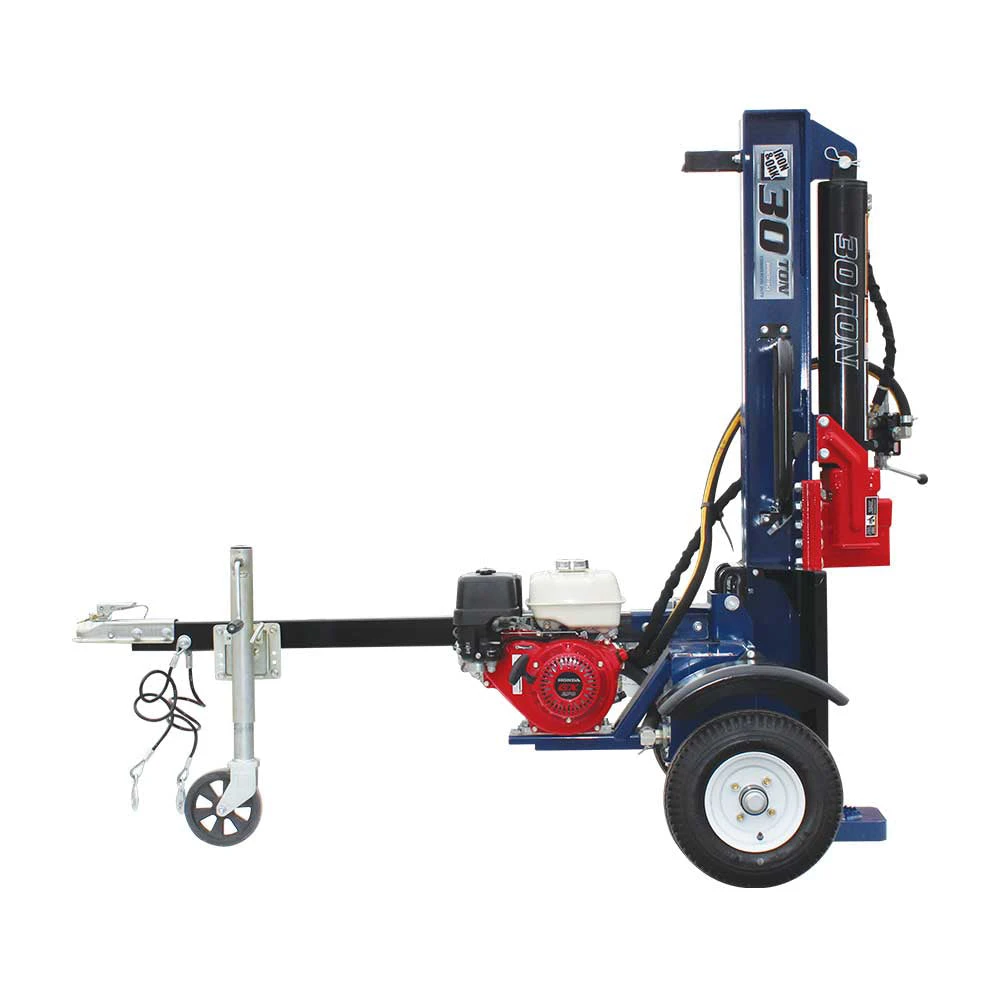

Operation	Horizontal and Vertical
Pump Type	16 Gpm Hi-lo 2 Stage
Splitting Force (Tons)	30 Tons
Splitting Height	32 In.
Tires	4.8 In. x 8.0 In. Highway Rated
Wedge	Heavy-duty, 5 Bolts Per Side
