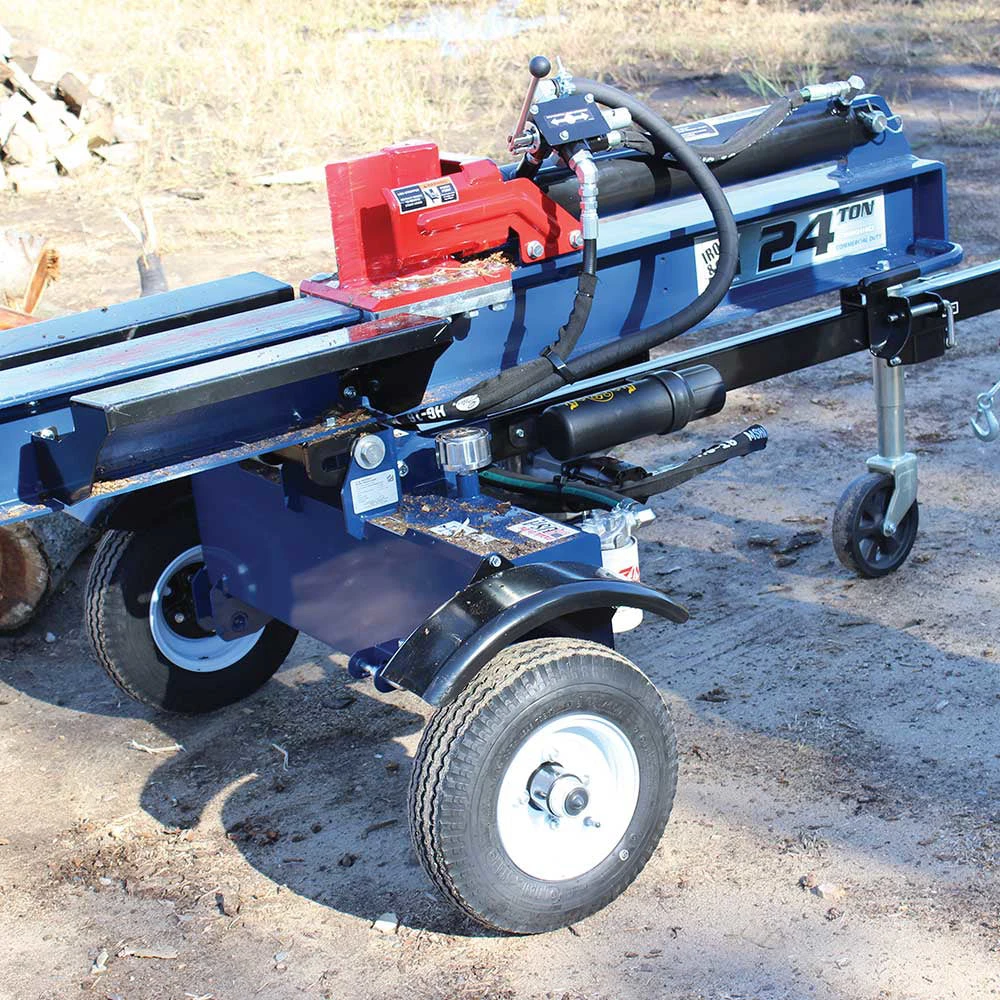

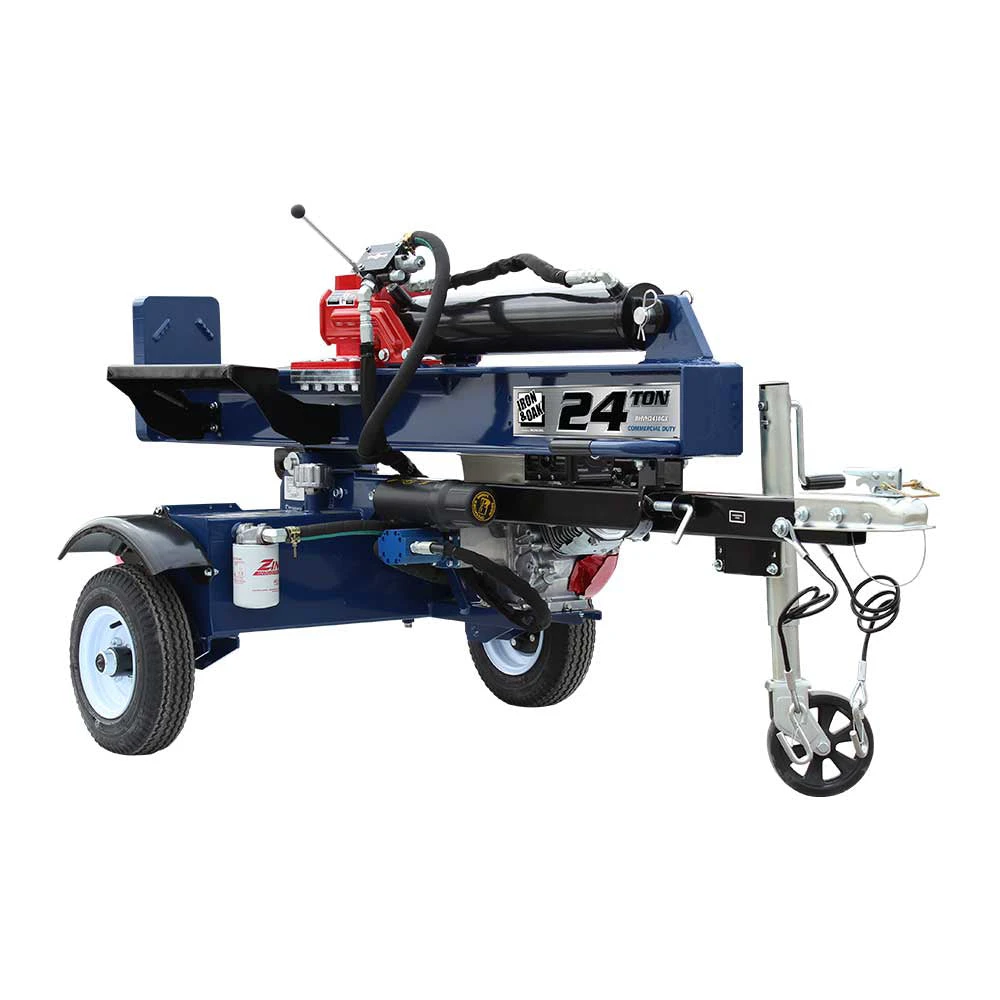

Iron And Oak BHVH2418GX 24-Ton Log Splitter W/ Honda GX160 Engine

Features

• Auto latch system locks beam into the horizontal position for safe towing

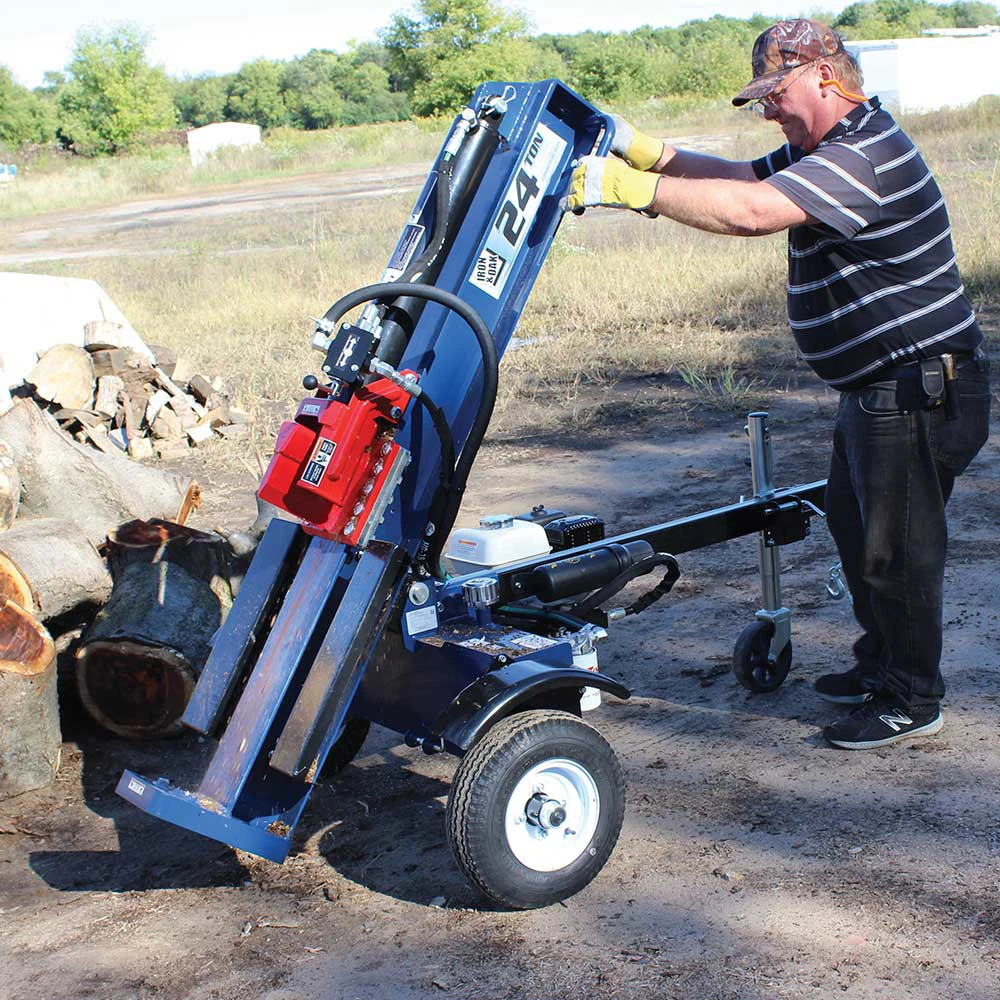

• Enhanced handle to assist with transitioning the unit between horizontal and vertical operating positions

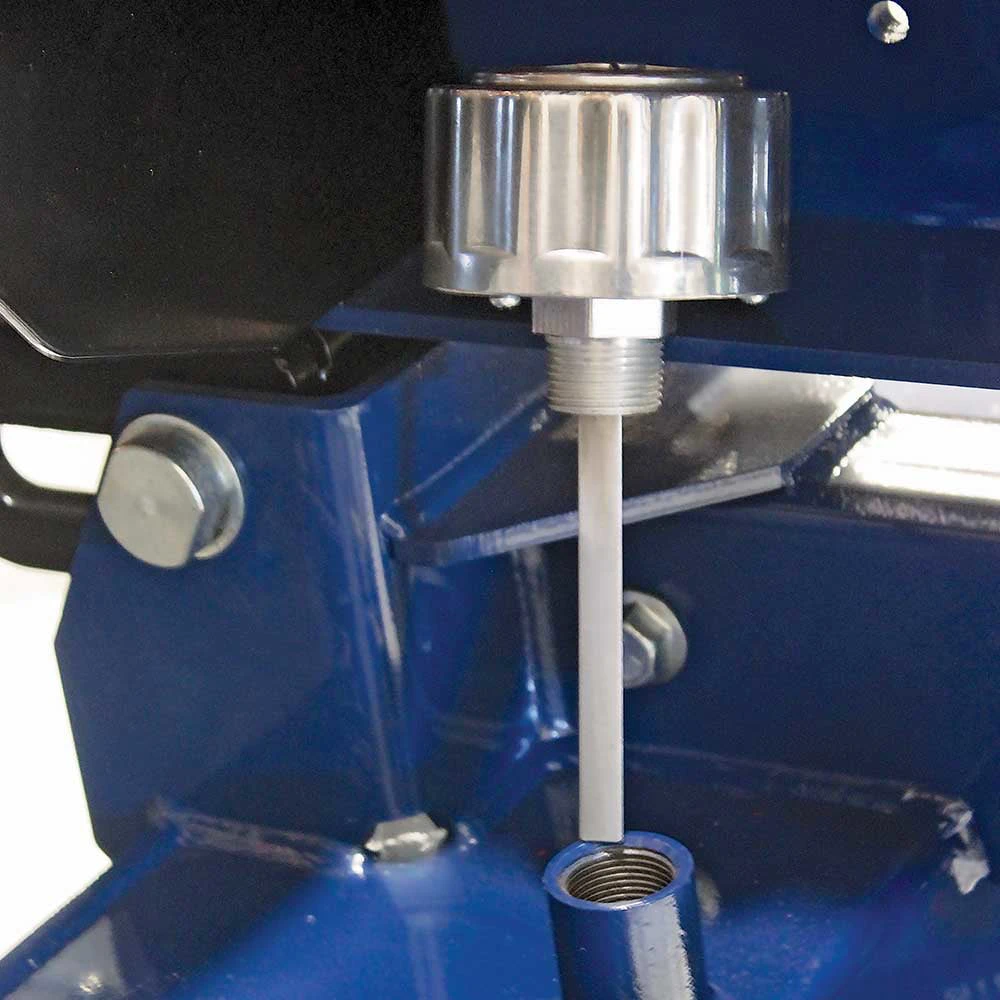

• The 4-stage hydraulic filtration system prevents damage to the hydraulic system by removing metal particles and other micro-particles that can contaminate and damage the machine – components include a suction strainer, return line filter, breather cap air filter, and magnetic drain plug

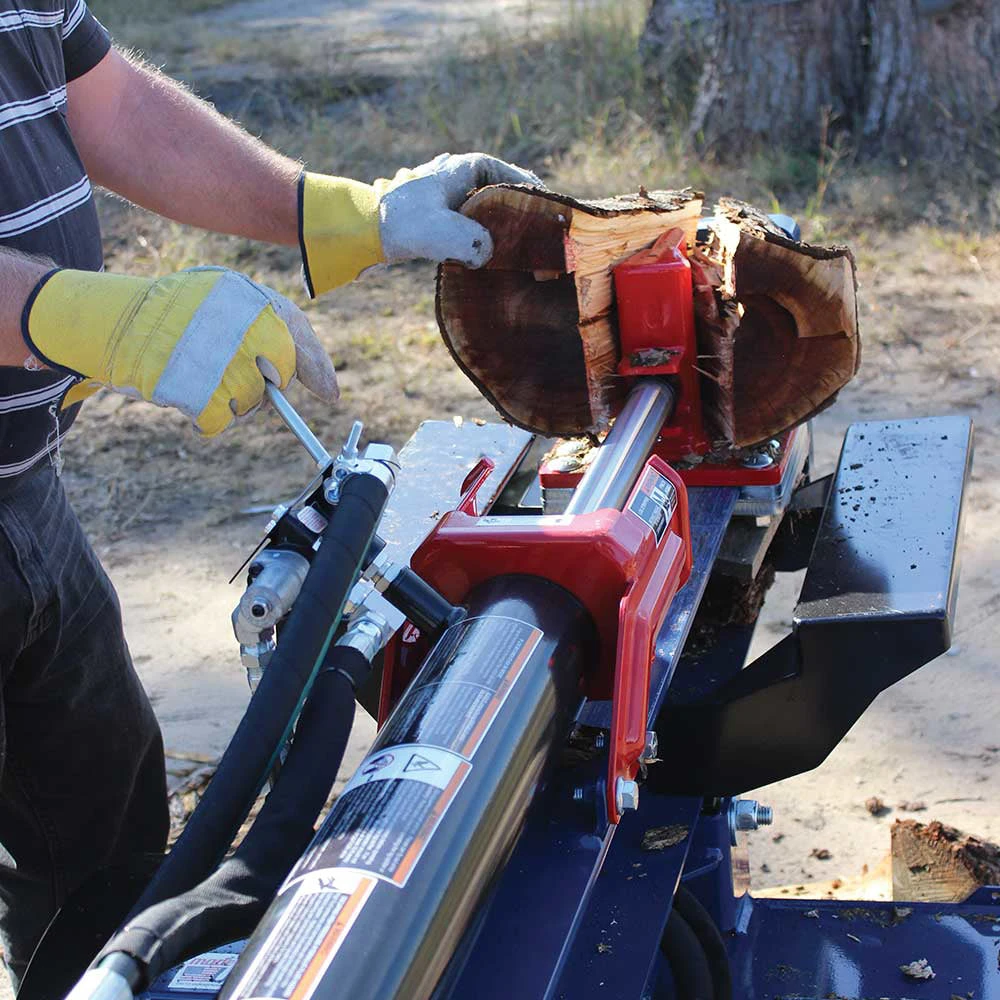

• Offset valve for a better operator position

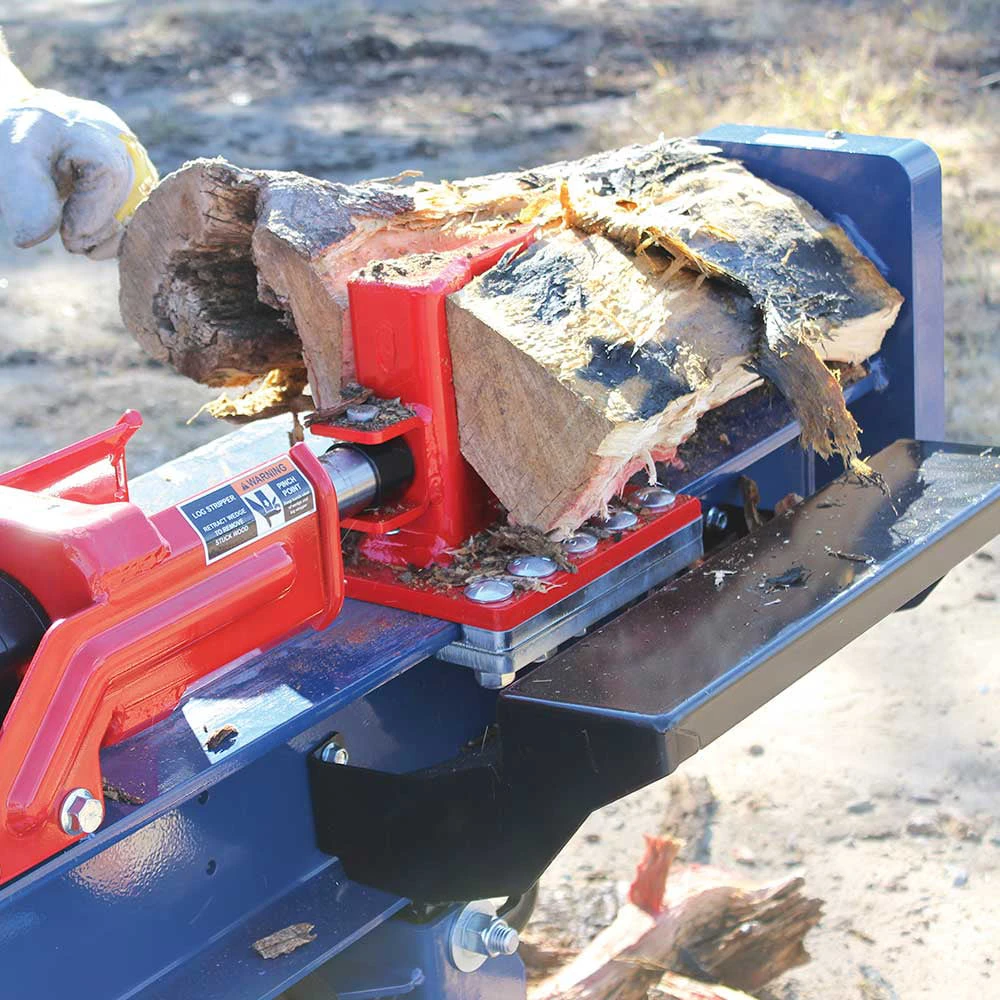

• Heavy-duty wedge design with five bolts per side
• Halite commercial cylinder seals

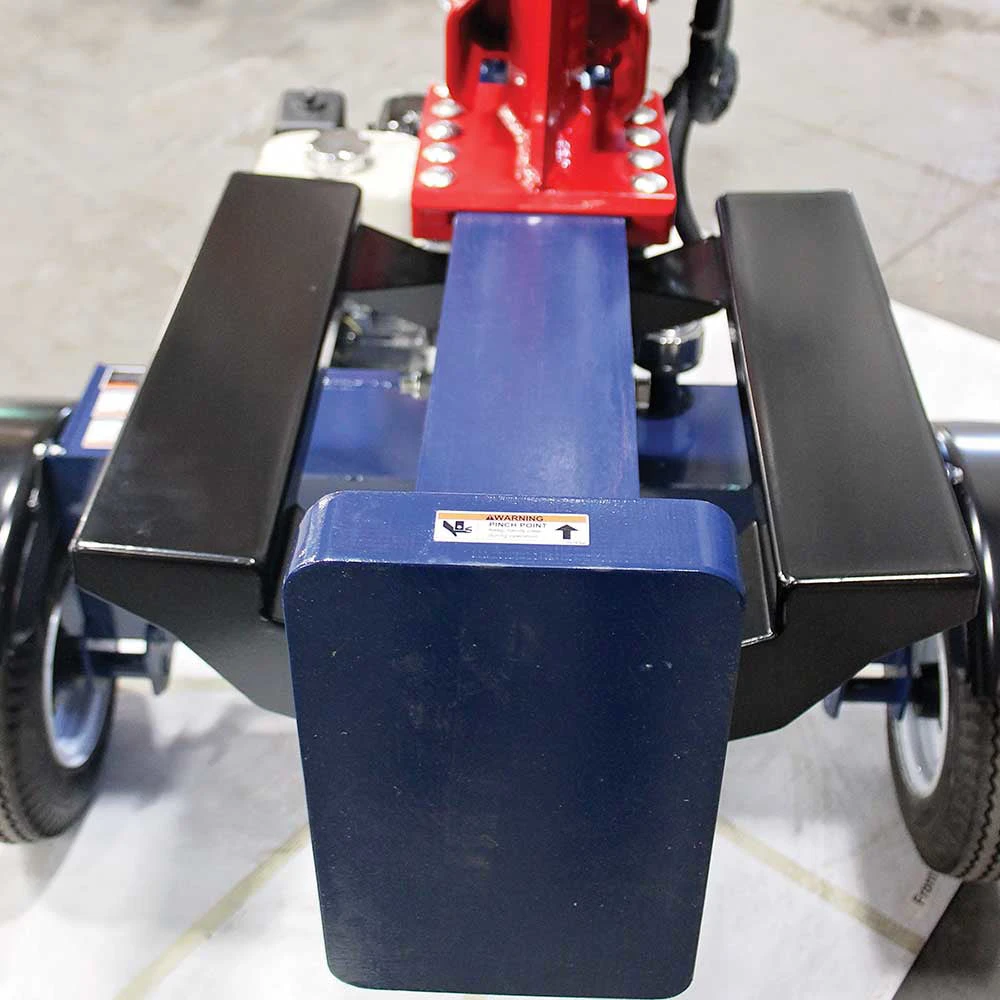

• Log dislodger and log cradle standard
• Larger jack wheel makes it easier to move
• Tow cables included

What’s in The Box

• Iron & Oak Log Splitter | 24-Ton | Honda GX160
• Owner’s Manual

Warranty

• 30 Day Satisfaction Guaranteed

Specifications

SKU	BHVH2418GX
Brand	Iron & Oak
Equipment Type	Log Splitter (Tow-behind)
Cycle Time	13 Seconds
Cylinder Size	4 in. x 24 in. Clevis Type, 1.75-in. Rod
Displacement	163cc
Dry Weight	675 Lbs
Engine	GX160
Engine Brand	Honda
Hitch	2 In.
Hydraulic Capacity	10.0 Gal. System Total (Tank 9 Gal. System Total)
Log Length	25 in. Max

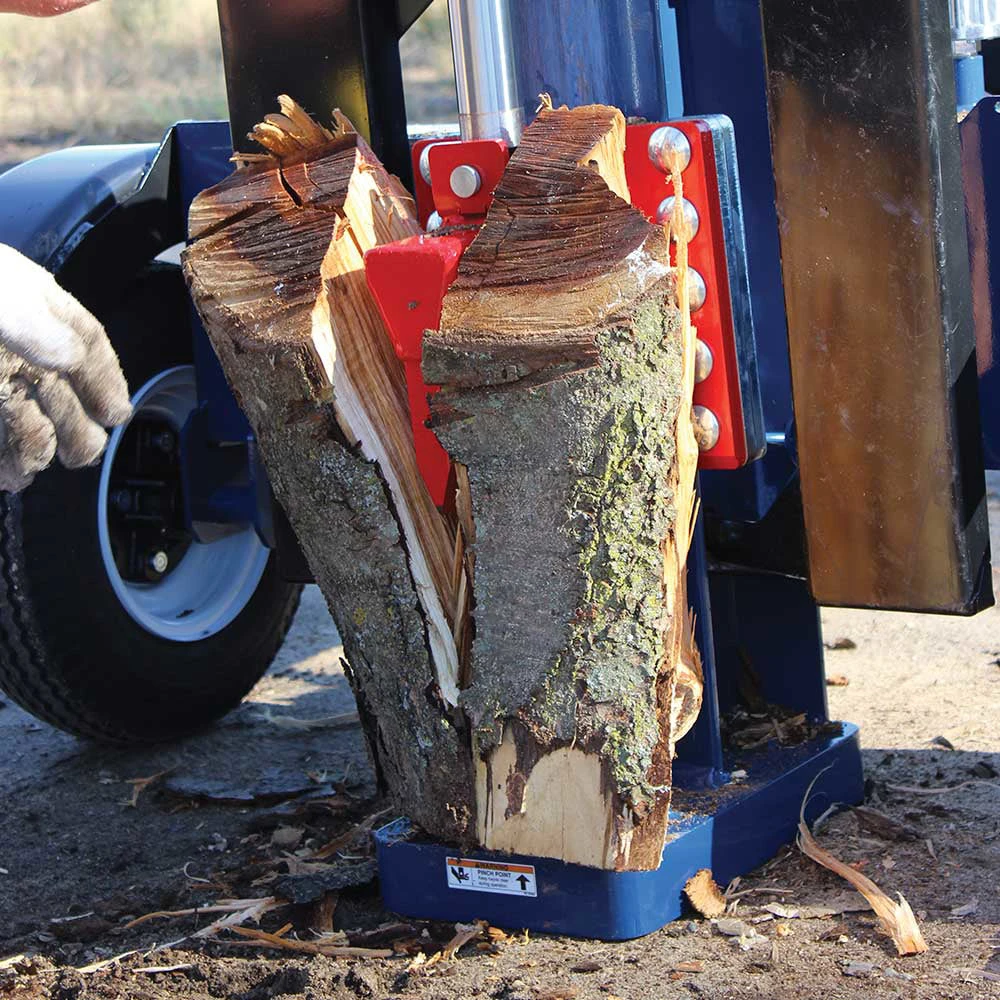

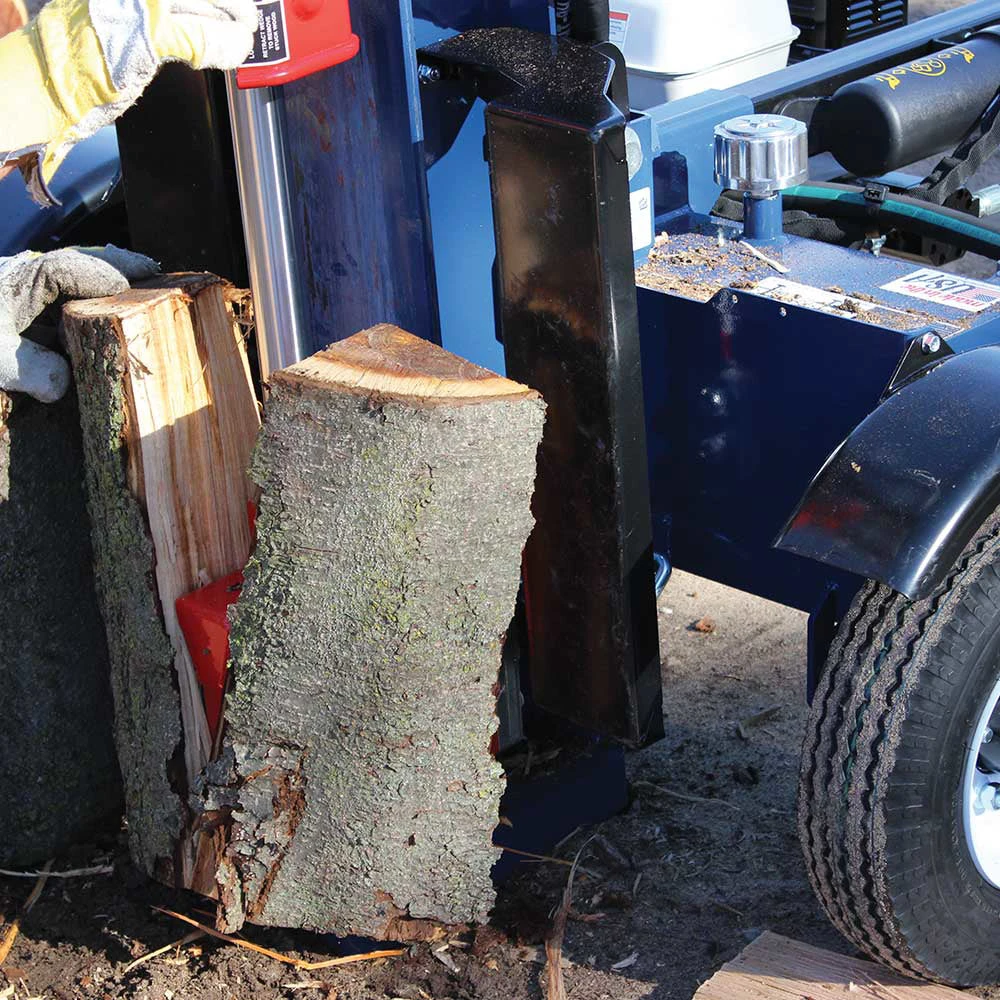

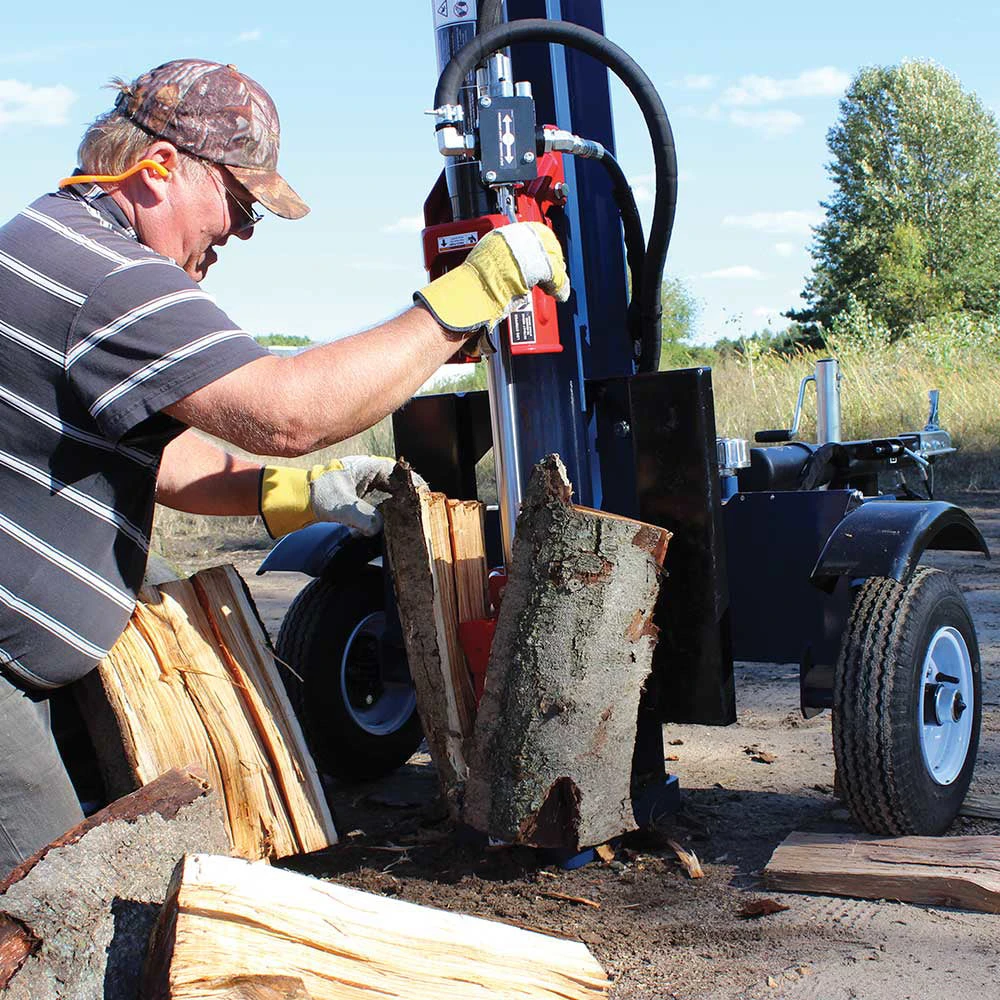

Operation	Horizontal and Vertical
Pump Type	11 Gpm Hi-lo 2 Stage
Splitting Force (Tons)	24 Tons
Splitting Height	32 In.
Tires	4.8 In. x 8.0 In. Highway Rated
Wedge	Heavy-duty, 5 Bolts Per Side
