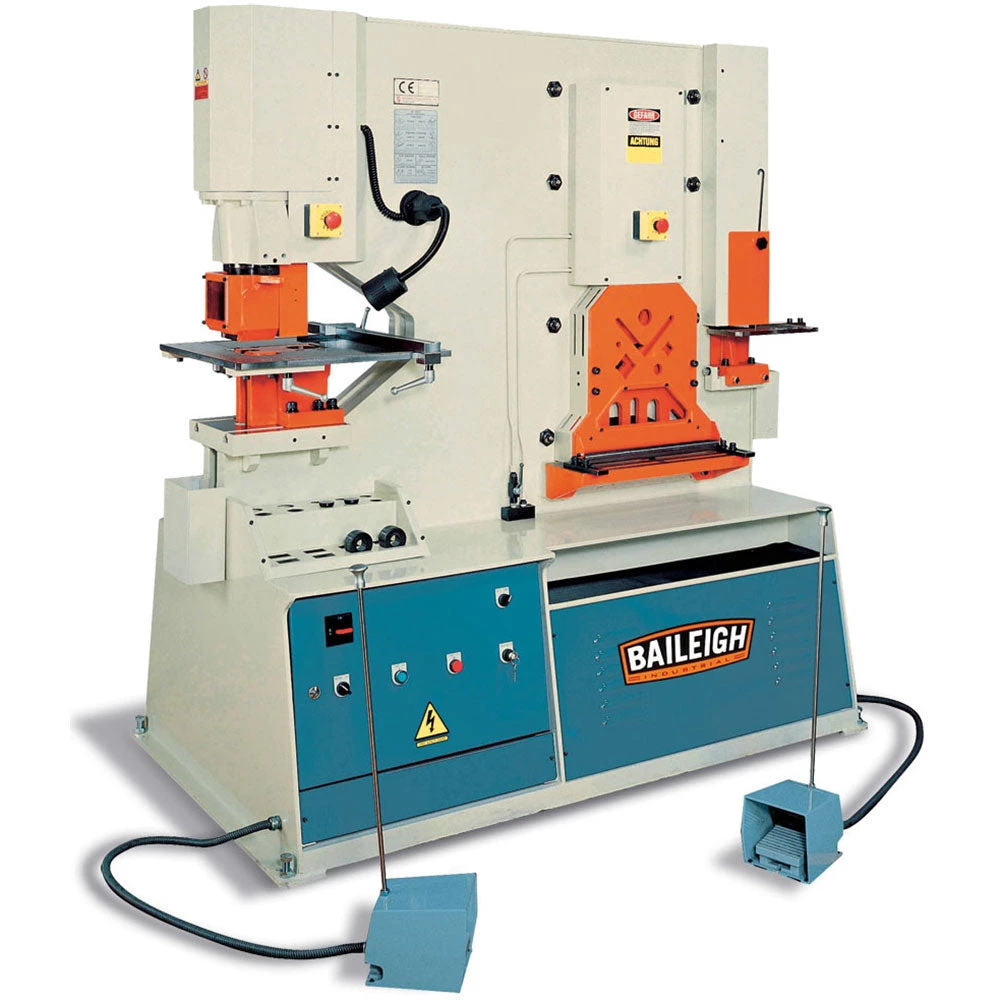

Baileigh 1007865 220V 3PH Dual Operator Ironworker W/ 95 Ton Punching Power

Features

• Heavy structural steel plate framework ensures rigidity and eliminates flexing
• 95 tons of punching pressure and a whopping 123 tons of shearing and notching force
• 5 integrated workstations each execute a different function: punching, notching, flat bar shearing, angle shearing, and bar shearing
• The SW-95 will let you finish tasks twice as fast by enabling two people to use it at the same time
• Dual-operator design enables two people to work at opposite ends of the machine simultaneously without loss of power at either station
• Hydraulic cylinders use entirely vertical movement to perform all functions
• Electric backgauge and adjustable material stops save you effort and deliver precise results for production runs
• Large worktables separate into 2-pieces, allowing you to get angle iron and oddly shaped materials to the punch without difficulty
• Includes 7 sets of punches and dies to accommodate a variety of applications
• Accepts universal tooling: Jog dial allows for simple and secure tool alignment
• Foot pedal provides convenient stop and start control
• Adjustable stroke control of both the upward and downward strokes limits movement and reduces costs
• 16 in. throat depth at the punch station handles large pieces of material and increases capacity
• Hydraulic hold-downs at the shear station ensure safe operation and even cuts
• Waste buckets keep your shop neat and reduce time spent on clean-up
• Punch tooling lasts longer on the SW-95 because stress is spread out over the entire circumference of the punch instead of just one edge
• Baileigh’s patented swing-away stripper allows for the quickest tooling changes in the industry
• Comes standard with a number of extras, like waste buckets and oversized worktables, features that other manufacturers consider upgrades
• Baileigh covers the SW-95 universal ironworker with a 1-year parts warranty and lifetime technical support by phone

What’s in The Box

• SW-95 Five Station Ironworker – 1007865
• Owner’s Manual

Warranty

• 1 year Limited Factory Warranty
• 30-Day Satisfaction Guaranteed

Specifications

SKU	1007865
Brand	Baileigh
Punching Pressure	95 Tons
Punch Capacity	1.062 x .875 in
(Diameter x Thickness)	2 x .5 in
Throat Depth	16
Max Stroke Length	3.93 in
Cycles / Min	38 at 15 mm
Working Height Up to Die	41.3 in
Flat Bar Shearing	16 x .75 in
Blade Length	16.125 in
Angle Flange Trim	4 in
Working Height	28.5 in
At 90‚A Shearing	5.125 x 5.125 x .5 in
Working Height	40.9 in
Single Vee Press Brake (L x T)	9.875 x .625 in
Multi-Vee Press Brake (L x T)	19.625 x .187 in
Angle Bending	4 x .312 in
Pipe Notching	4.4 in
Lg.Vee-Notcher (Side x Side x T)	5.75 x 5.75 x .375 in *
Vee-Notcher (Side x Side x T)	4.1 x 4.1 x .5 in*
Rect. Notcher(WxDxT)	2 x 3.5 x .5 in
Working Height	41.3 in
Round Bar Shear	1.75 in
Square Bar Shear	1.75 x 1.75 in
Electric Power (HP)	10 HP
Net Weight (Apr.)	6,050 lbs
Machine Dim. Apr. (L x W x H)	70.6 x 40.1 x 73.4 in
